Diesel Generator Set Powered by Weichai Engine HT900WC
Key words:
Diesel Generator Set Powered by Weichai Engine HT900WC
Classification:
Generator Powered by Weichai Engine
Standard Generator Set
800-1000KW
E-mail:
WhatsApp:
Diesel Generator Set Powered by Weichai Engine HT900WC
The production of Weichai diesel generator set is located in Weichai Industrial Park. The company covers an area of 25,200 square meters and has advanced product research and development and testing equipment. Weichai can produce more than 50,000 sets of various generator sets per year, and the power of the sets covers 2-8700KW. It uses the engine independently developed and produced by Weichai, and is matched with Weichai and other internationally renowned brand motors. It is currently widely used in national defense, communications, petroleum , medical, plateau, railway, field rescue, agriculture and animal husbandry and other fields.
| General Characteristics | |||
| Model | HT900WC | Rated power | 900 KW |
| Standby power | 990 KW | Output current | (A) |
| Weight | 7800 KG | Size | 4800*2100*2500(L×W×H,mm) |
| Output voltage | 400/230(V) | ||
| Diesel Engine Specification | Alternator Specification | ||
| Model | 12M33D1108E200 | Model | HTI-900 |
| Rated power | 1007 KW | Rated power | 900 KW |
| Standby power | 1108 KW | Standby power | 990 KW |
| Emission standard | Euro 2 | Brand | Yangzhou Hengtong (standard configuration) |
| Manufacturing plant | Weichai Power | Manufacturer | Jiangsu Hengtong Generator Manufacturing Co., Ltd |
| Cylinder diameter | 150 mm | Motor type | Brushless three-phase AC synchronous generator |
| Stroke | 185 mm | Voltage regulation method | AVR (Automatic Voltage Regulation) |
| Speed adjusting manner | Electronic speed adjusting | Temperature rise | H℃ |
| Displacement | 39.2(L) | Overload current | 3～5le≥5S |
| Rated fuel consumption | 200 (g/KW.H) | Overload capacity | 3～5le≥5S |
| Rated fuel consumption | 0.3 (g/KW.H) | Short-circuit current | 3 times 2 seconds |
| Cooling method | Closed fan water cooling | Short circuit capability | 3 times 2 seconds |
| Rotation speed | 1500(rpm) | Efficiency | 92.4 |
| Temperature range of thermostat adjustment | 82-93(℃) | Insulation/Protection level | H-level/IP23 |
| Exhaust temperature | 405/410(℃) | Wiring method | Three phase four wire, Y-shaped connection method |
| Allow back pressure | 10(KPa) | Rated voltage | 400/230(V) |
| Intake resistance | 2.5(KPa) | Winding material | Pure copper |
| Fuel specifications and grades | 0# Light diesel fuel | Cooling method | Self cooling |
| Fuel consumption | ≦205(g/kw.h) | Excitation method | Self excitation |
| Cylinder arrangement | L-shaped | Telephone interference coefficient | THF<2, TIF<50 |
| Starting method | Electric start | ||
| Controller Specification | |||
| Model | HGM6110U | Brand | Zhengzhou Zhongzhi |
| Manufacturing plant | Zhongzhi Technology | Display mode | LCD display |
| Language type | Supports eight languages worldwide | Automatic function | Automatic detection of mains power, automatic start, automatic stop |
| Accessories | |||
| Material of chassis | I-beam or channel steel | Chassis strength | Passed 500KG torque test |
| Cooling water tank | Hengtong dedicated water tank | Distance between cooling water tank fins | 0.8cm |
| Fuel tank material | 2mm thick high-quality cold-rolled steel plate | Soundproof box | Honeycomb type double-layer industrial muffler |
| Shock-absorbing pad | Bowl shaped or square shaped rubber shock absorbers | Storage battery | Maintenance-free batteries |
Established in 2014, Shandong Hengtong Power Co., Ltd. is a professional equipment enterprise for diesel generator sets and diesel engine integrating R&D, production, sales and service.
The company covers an area of more than 60 acres, has a modern production workshop of 30,000 square meters, an office area of more than 6,000 square meters, and has more than 280 employees. The company has 4 diesel engine production lines and 6 sets of unit assembly platforms, with an annual output of more than 50,000 diesel engines and more than 60,000 generator sets. Has passed ISO9001 quality system certification, 14001 environmental certification, and product production has passed CE certification for export to the European Union.
Previous Page

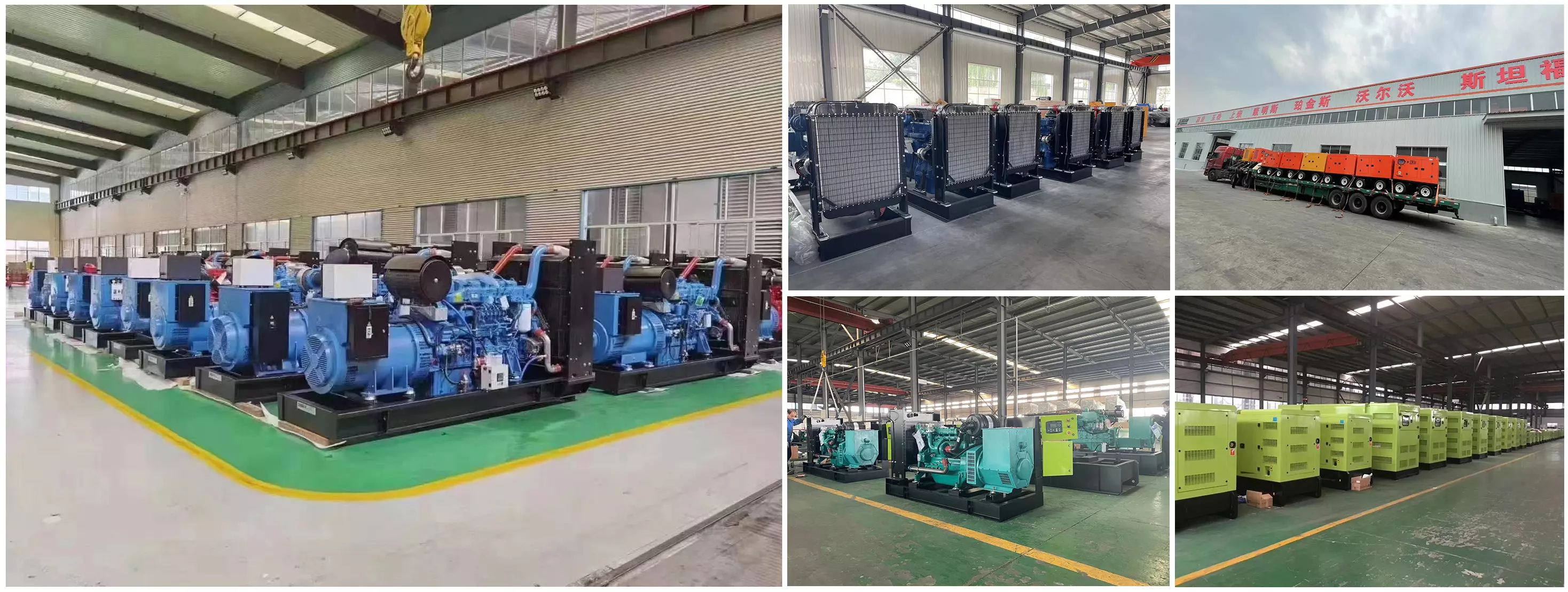

Our Workshop
