Diesel Generator Set powered by Cummins Engine HT180C
Key words:
Diesel Generator Set powered by Cummins Engine HT180C
Classification:
Generator Powered by Cummins Engine
100-200KW
E-mail:
WhatsApp:
Diesel Generator Set powered by Cummins Engine HT180C
Cummins is headquartered in Columbus USA. Cummins is the U.S Fortune 500 list and global famous brand. The engine power for generator is from 20kw to 2573kw. Cummins service customers in approximately 160 countries and territories .This is through a network of more than 550 company-owned and independent distributor locations ,with approximately 5000 dealer locations. In china, investment factories include: Dongfeng Cummins (joint with the second automobile to be DCEC) and Chongqing Cummins (joint with Chongqing to be CCEC).
| General Characteristics | |||
| Model | HT180C | Rated power | 180 KW |
| Standby power | 198 KW | Output current | (A) |
| Weight | 1900 KG | Size | 2500*1100*1700(L×W×H,mm) |
| Output voltage | 400/230(V) | ||
| Diesel Engine Specification | Alternator Specification | ||
| Model | 6CTAA8.3-G9 | Model | HTI-180 |
| Rated power | 210 KW | Rated power | 180 KW |
| Standby power | 231 KW | Standby power | 198 KW |
| Emission standard | Euro 2 | Brand | Yangzhou Hengtong (standard configuration) |
| Manufacturing plant | Cummins Power | Manufacturer | Jiangsu Hengtong Generator Manufacturing Co., Ltd |
| Cylinder diameter | 114 mm | Motor type | Brushless three-phase AC synchronous generator |
| Stroke | 135 mm | Voltage regulation method | AVR (Automatic Voltage Regulation) |
| Speed adjusting manner | Mechanical speed regulation | Temperature rise | H℃ |
| Displacement | 3.9(L) | Overload current | 3～5le≥5S |
| Rated fuel consumption | 200 (g/KW.H) | Overload capacity | 3～5le≥5S |
| Rated fuel consumption | 0.3 (g/KW.H) | Short-circuit current | 3 times 2 seconds |
| Cooling method | Closed fan water cooling | Short circuit capability | 3 times 2 seconds |
| Rotation speed | 1500(rpm) | Efficiency | 92.4 |
| Temperature range of thermostat adjustment | 82-93(℃) | Insulation/Protection level | H-level/IP23 |
| Exhaust temperature | 405/410(℃) | Wiring method | Three phase four wire, Y-shaped connection method |
| Allow back pressure | 10(KPa) | Rated voltage | 400/230(V) |
| Intake resistance | 2.5(KPa) | Winding material | Pure copper |
| Fuel specifications and grades | 0# Light diesel fuel | Cooling method | Self cooling |
| Fuel consumption | ≦205(g/kw.h) | Excitation method | Self excitation |
| Cylinder arrangement | L-shaped | Telephone interference coefficient | THF<2, TIF<50 |
| Starting method | Electric start | ||
| Controller Specification | |||
| Model | HGM6110U | Brand | Zhengzhou Zhongzhi |
| Manufacturing plant | Zhongzhi Technology | Display mode | LCD display |
| Language type | Supports eight languages worldwide | Automatic function | Automatic detection of mains power, automatic start, automatic stop |
| Accessories | |||
| Material of chassis | I-beam or channel steel | Chassis strength | Passed 500KG torque test |
| Cooling water tank | Hengtong dedicated water tank | Distance between cooling water tank fins | 0.8cm |
| Fuel tank material | 2mm thick high-quality cold-rolled steel plate | Soundproof box | Honeycomb type double-layer industrial muffler |
| Shock-absorbing pad | Bowl shaped or square shaped rubber shock absorbers | Storage battery | Maintenance-free batteries |
Established in 2014,Shandong Hengtong Power Co., Ltd. is a professional equipment enterprise for diesel generator sets and diesel engines integrating R&D, production, sales and service.
The company covers an area of more than 60 acres, has a modern production workshop of 30,000 square meters, an office area of more than 6,000 square meters, and has more than 280 employees. The company has 4 diesel engine production lines and 6 sets of unit assembly platforms, with an annual output of more than 50,000 diesel engines and more than 60,000 generator sets. Has passed ISO9001 quality system certification, 14001 environmental certification, and equipment production has passed CE certification for export to the European Union.
Previous Page

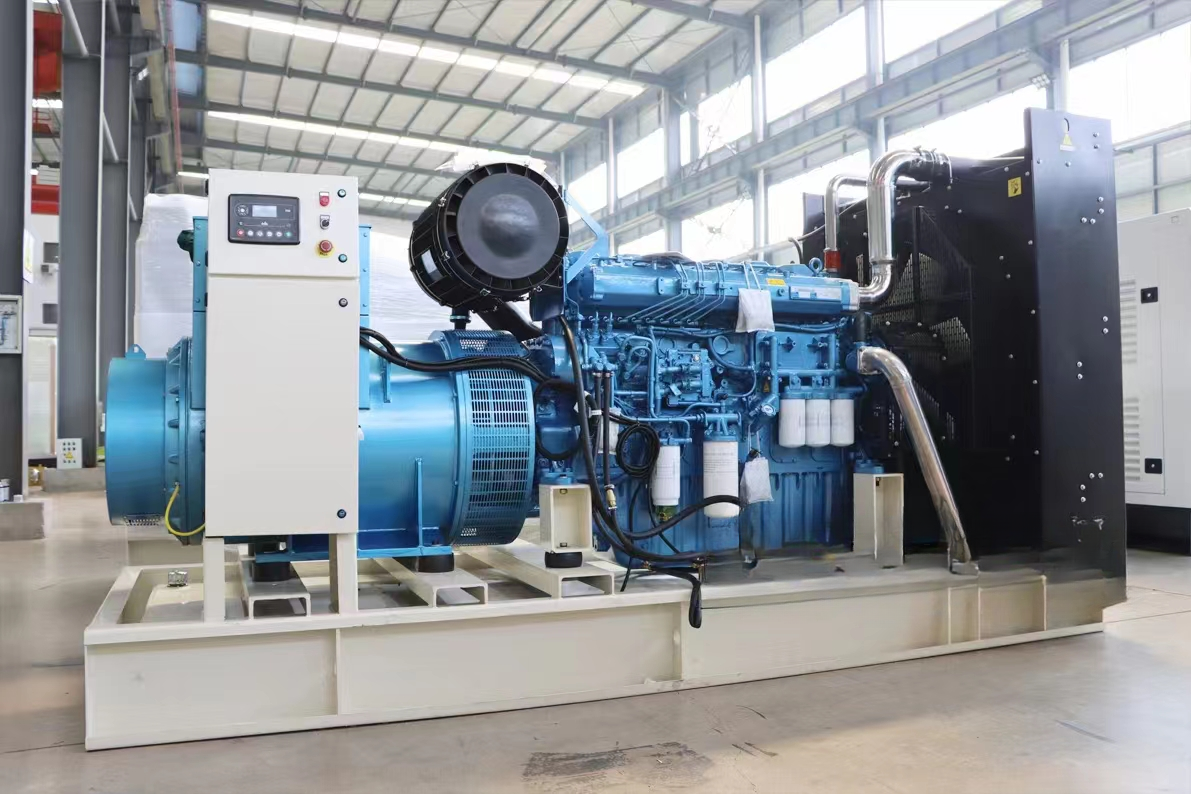

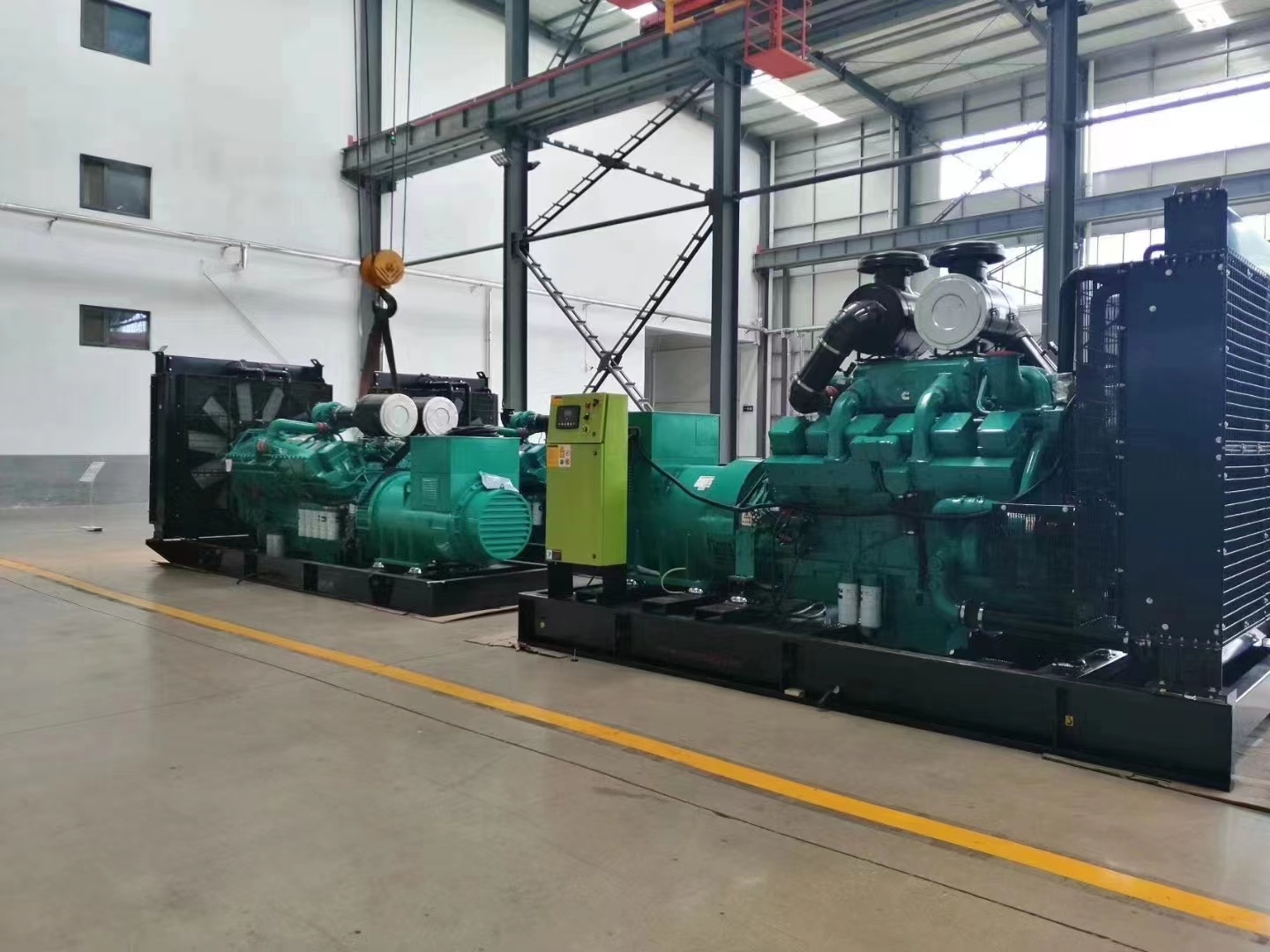

Our Workshop

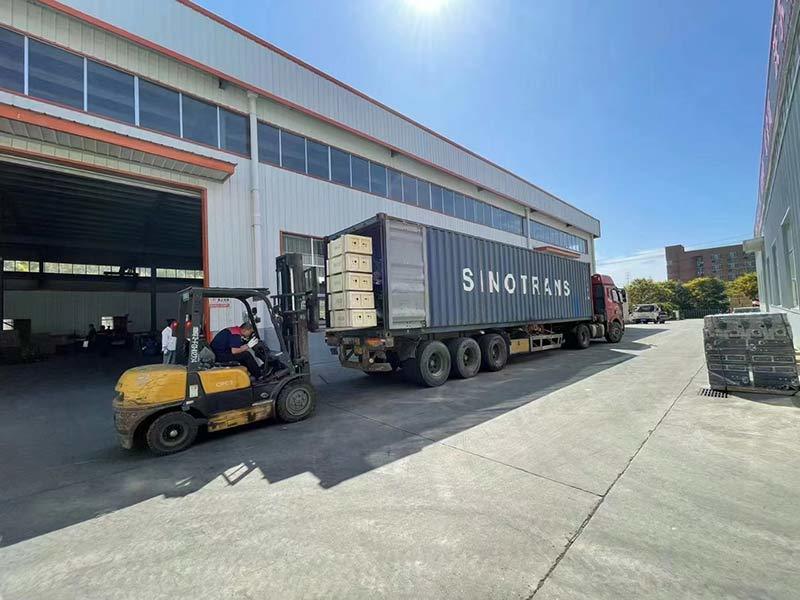

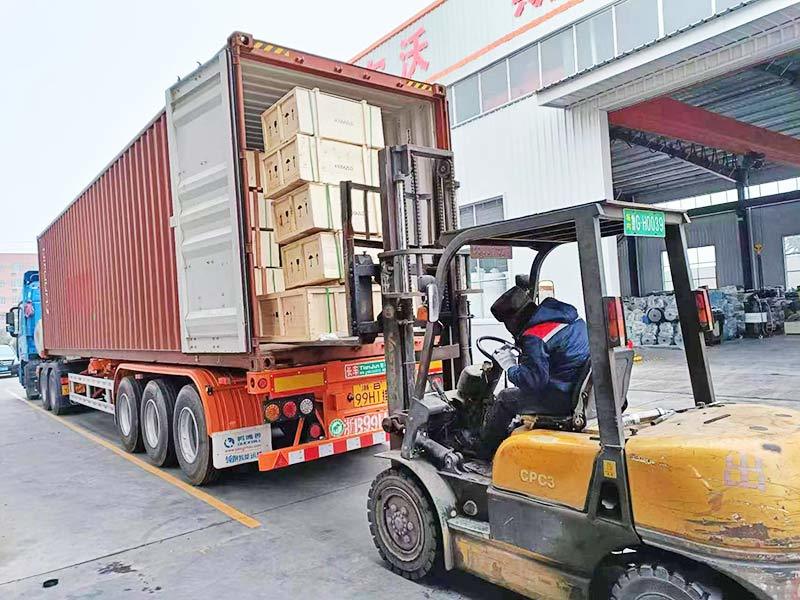

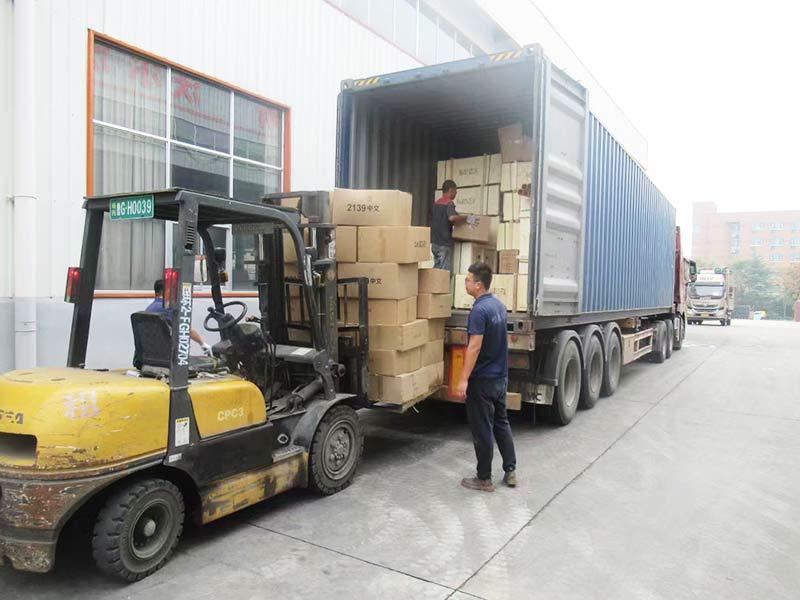

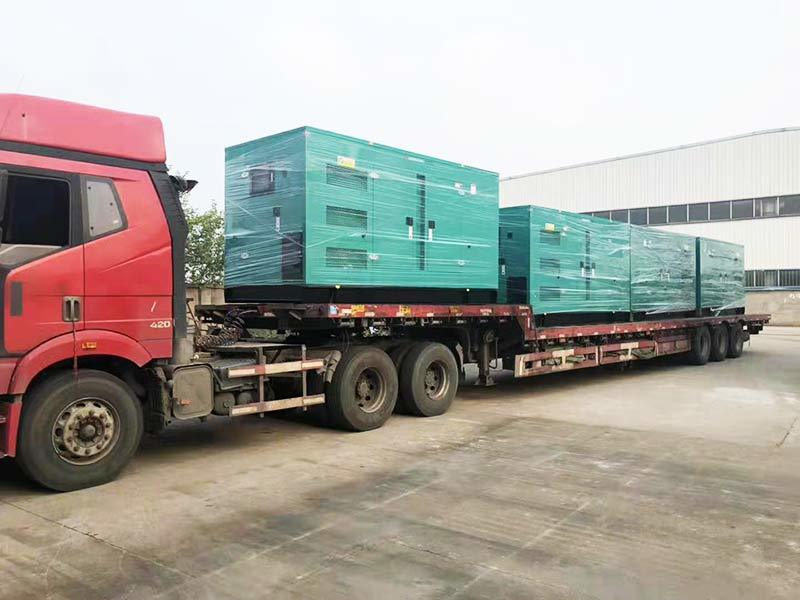

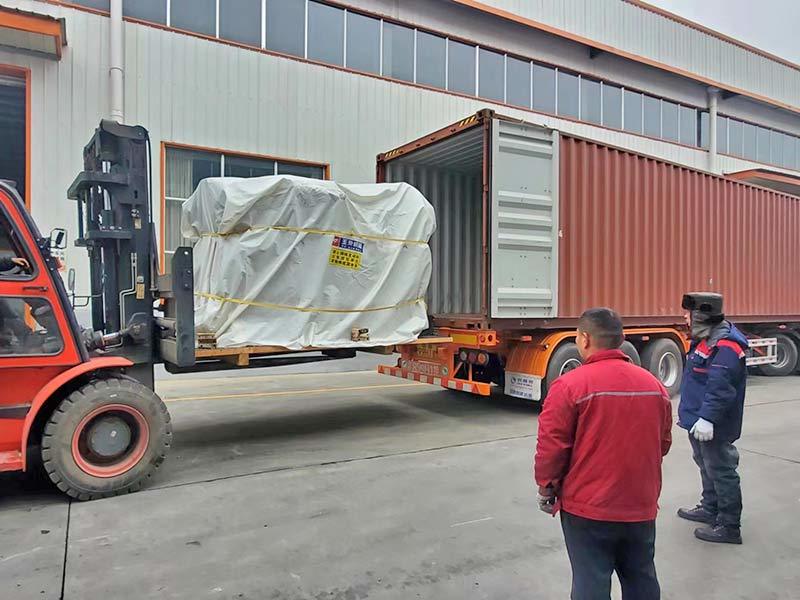

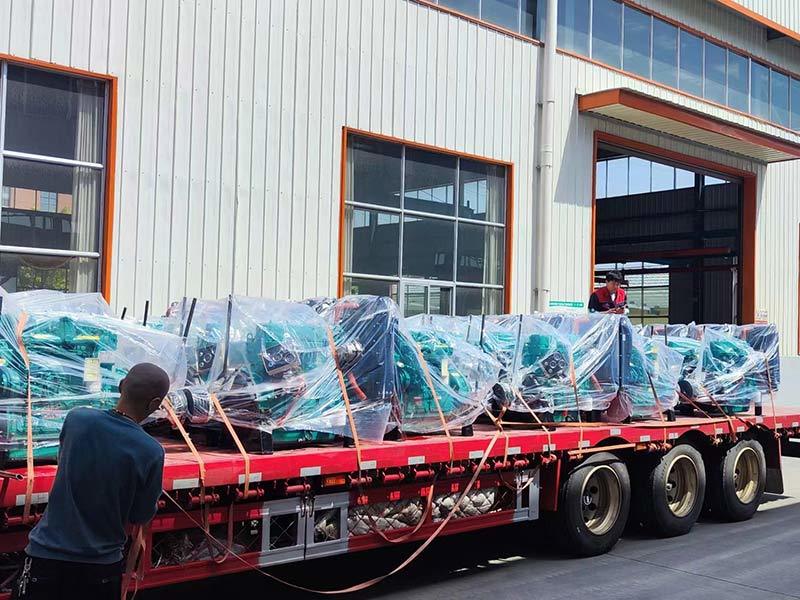

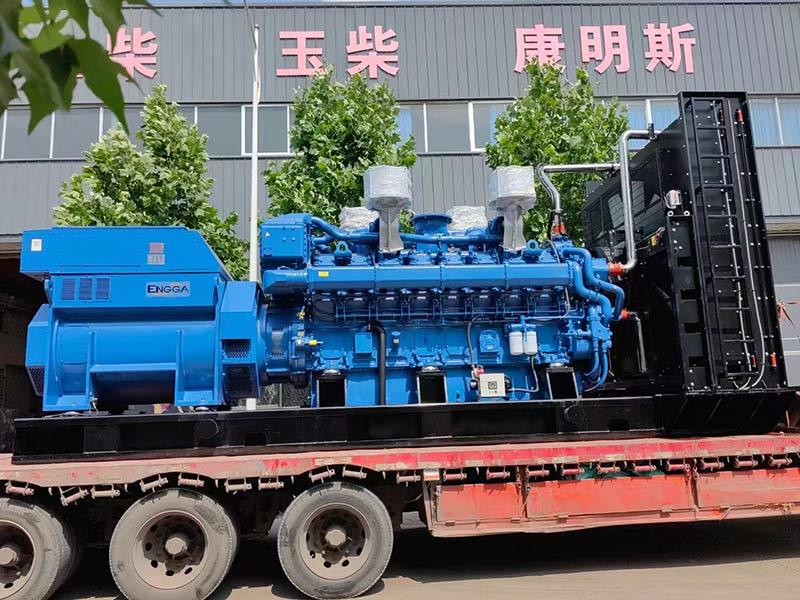

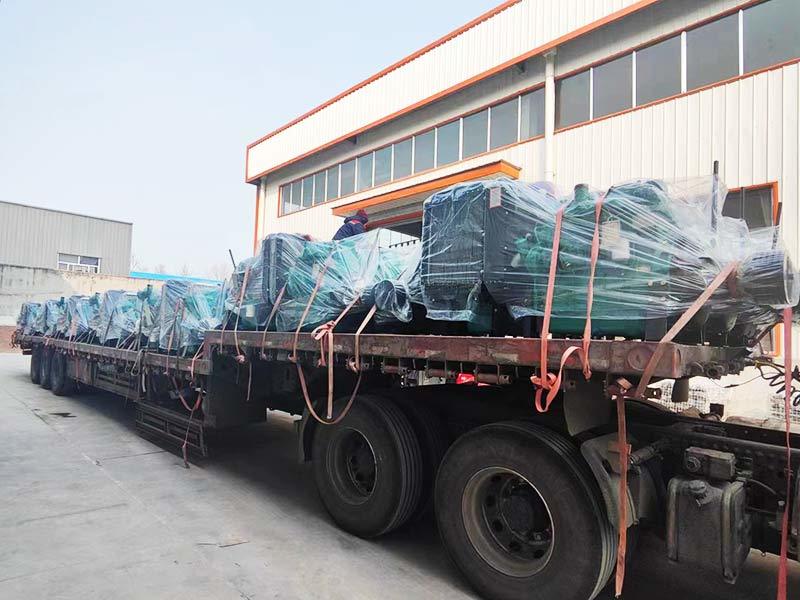

Delivery site

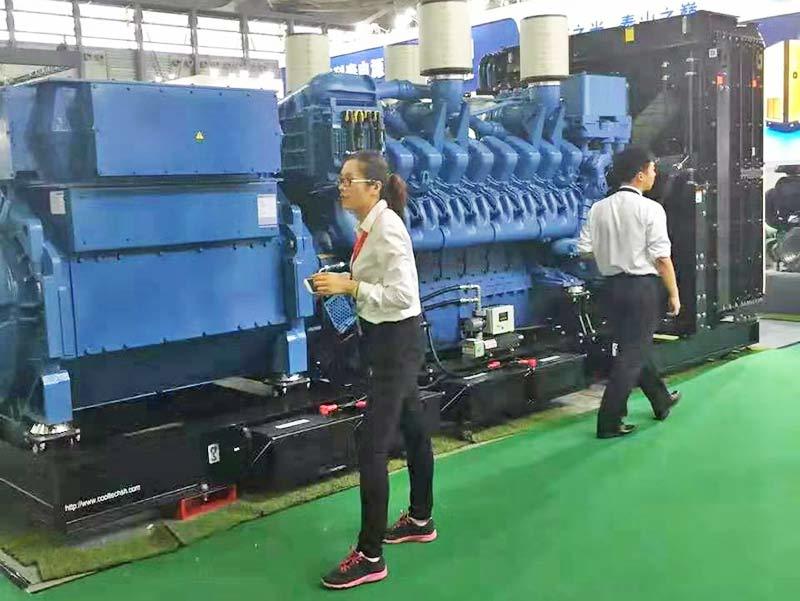

Exhibition
